Matrix Flowcharts

From “E-book Indexing update“, Pilar Wyman, Walter Greulich, and Glenda Browne, Continental Connections International Indexing Conference, Berlin, Germany, 2022 (updated Spring, 2024).

Download all Matrix Flowcharts as a zip file, or download an individual charts by right-clicking the image and selecting “Save Image As…”.

Matrix Flowchart showing ebook publishing/distribution.
Matrix Flowchart showing creation and display matrix for EPUB/Kindle files

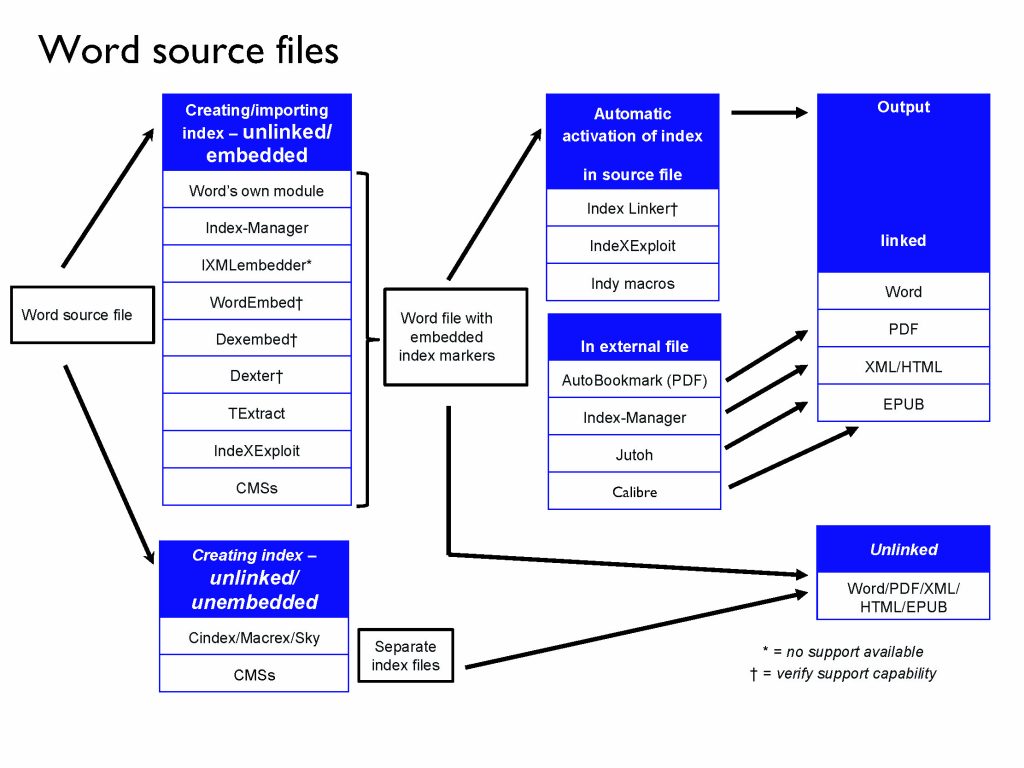

Matrix Flowchart for Word source files

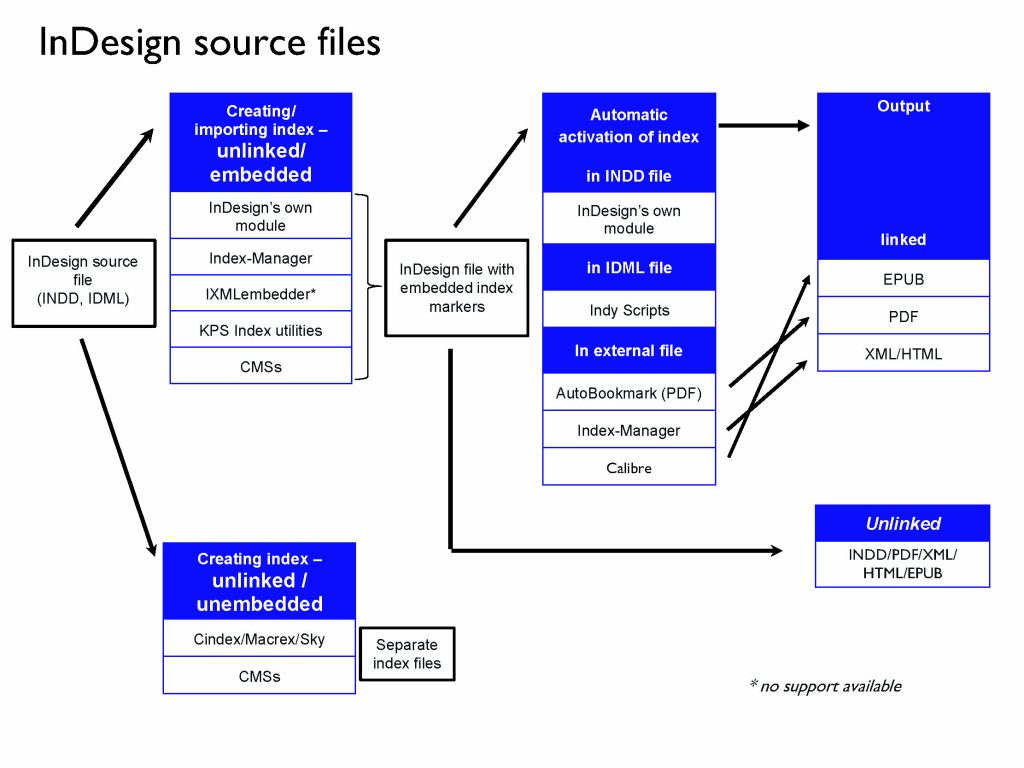

Matrix Flowchart for InDesign source files
Matrix Flowchart for FrameMaker souce files

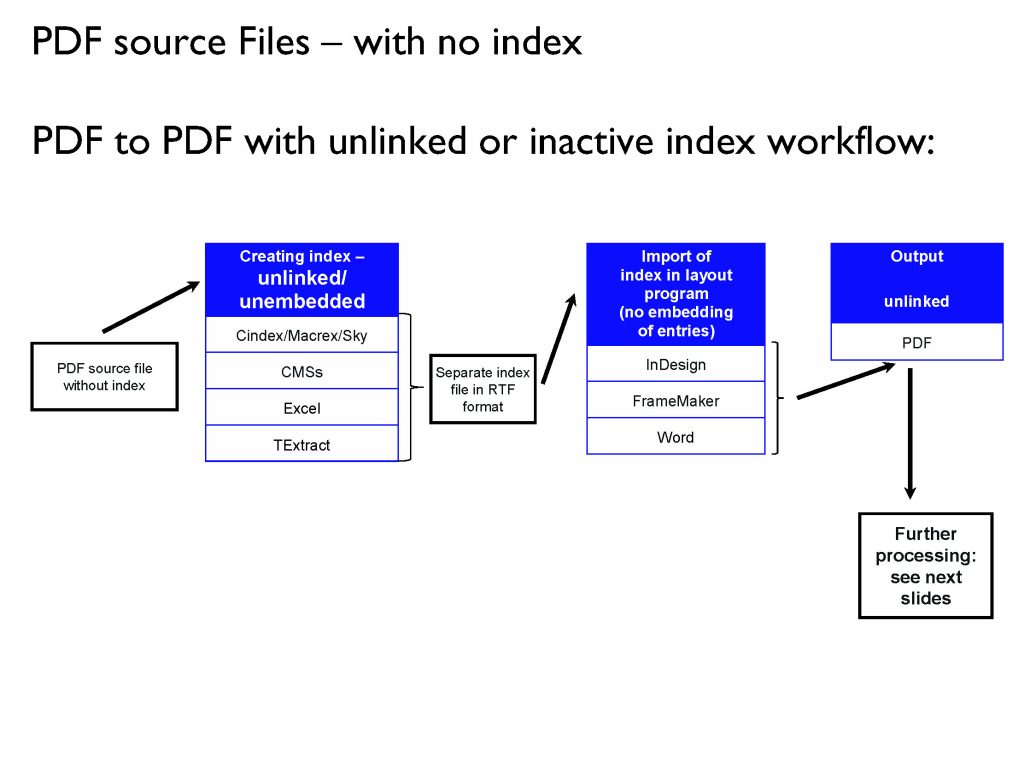

Matrix Flowchart for PDF source Files - with no index (PDF to PDF with unlinked or inactive index workflow)

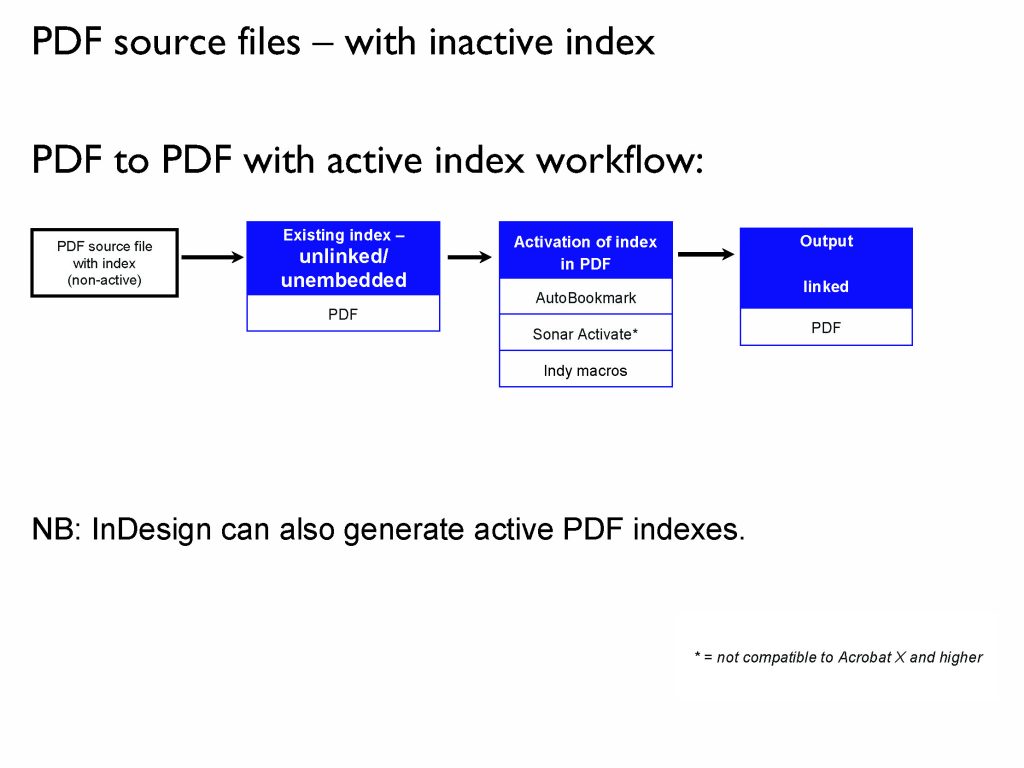

Matrix Flowchart for PDF source files - with inactive index (PDF to PDF with active index workflow)

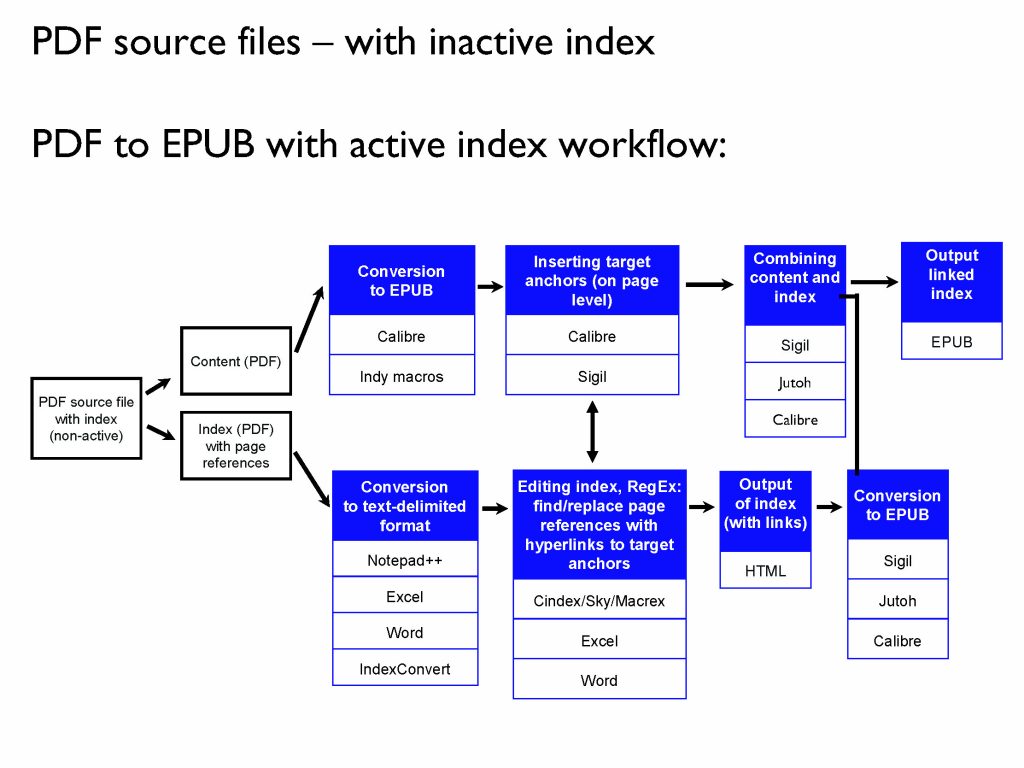

Matrix Flowchart for PDF source files - with inactive index (PDF to EPUB with active index workflow)

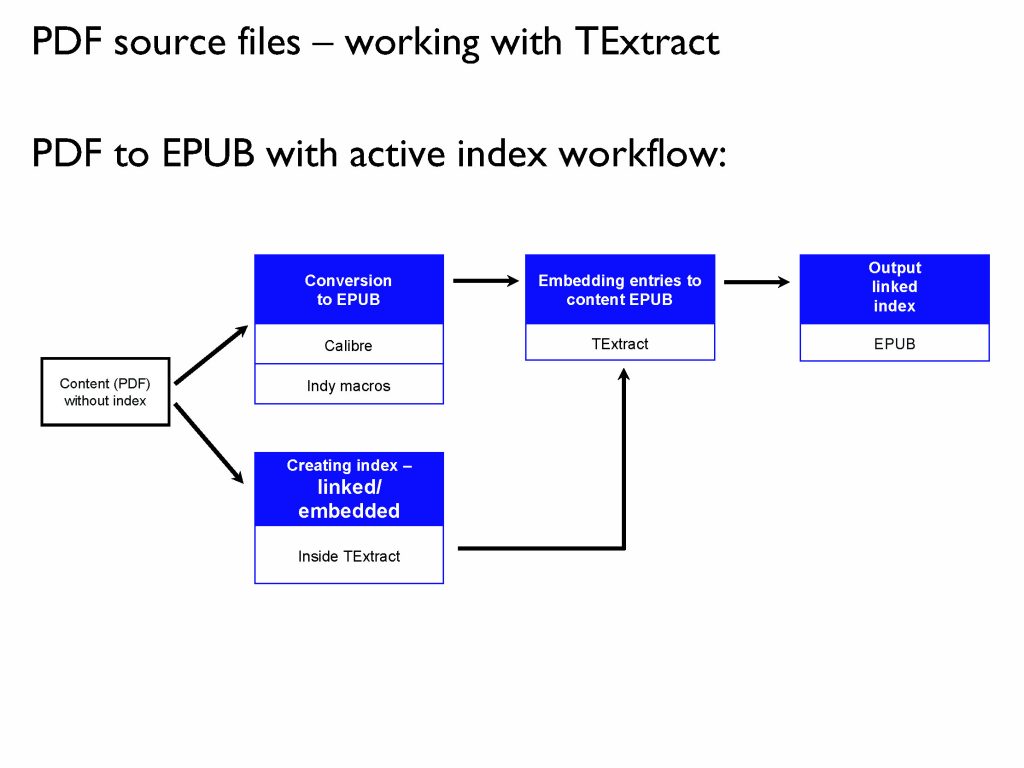

Matrix Flowchart for PDF source files - working with TExtract

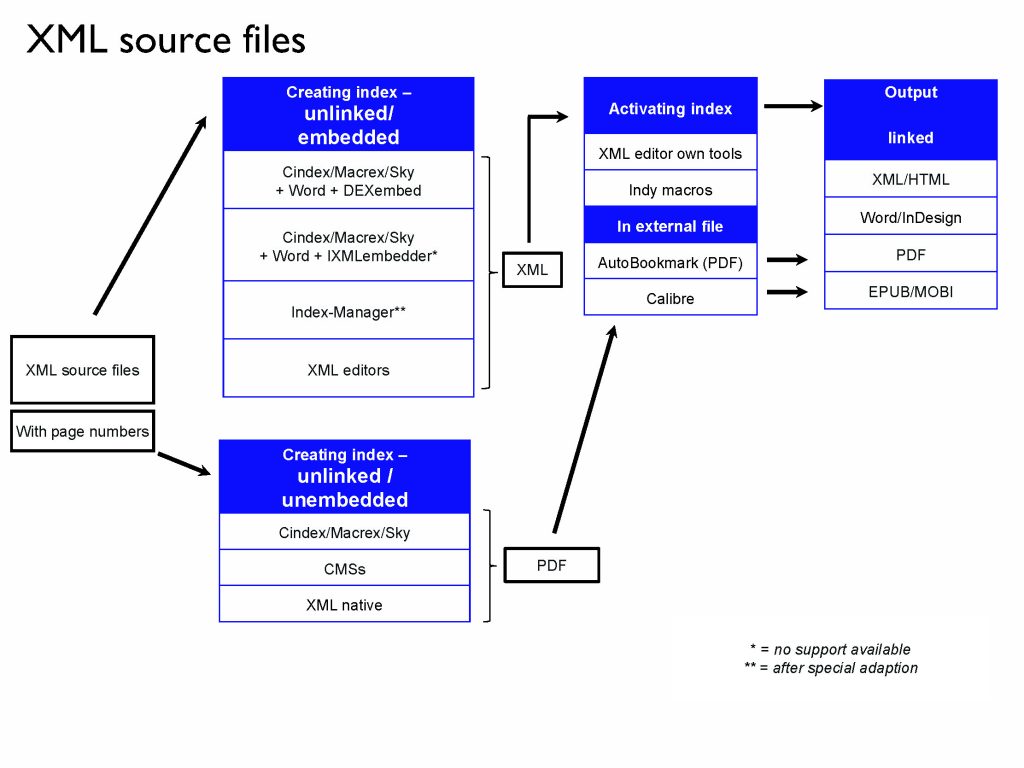

Matrix Flowchart for XML source files

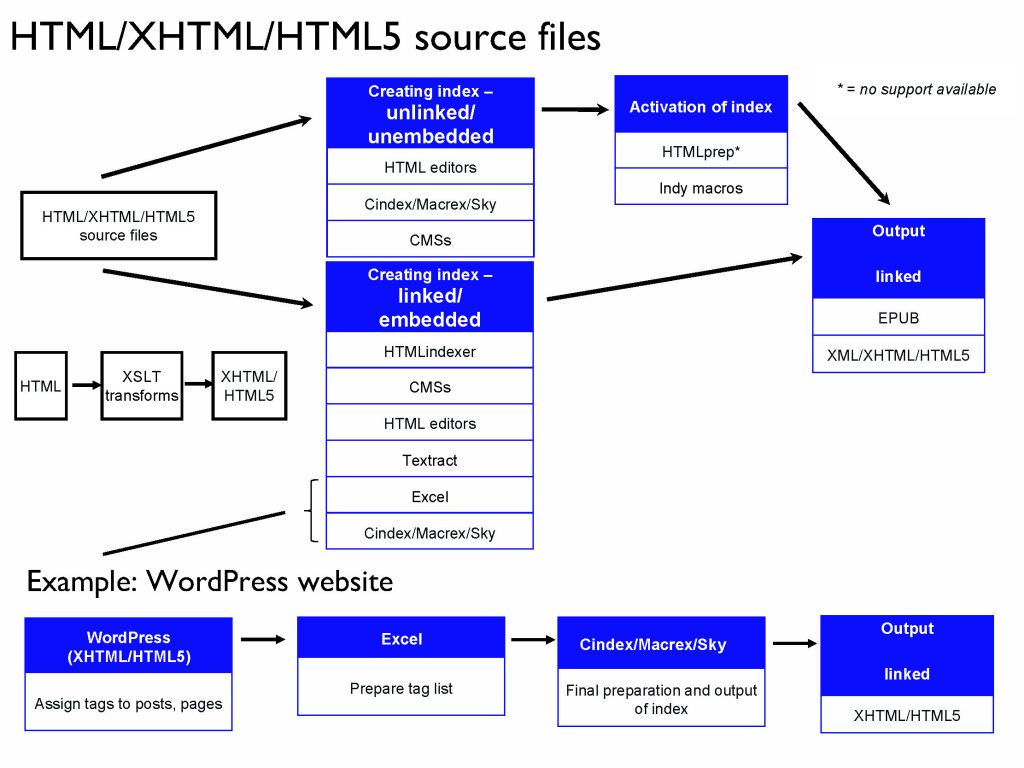

Matrix Flowchart for HTML/XHTML/HTML5 source files

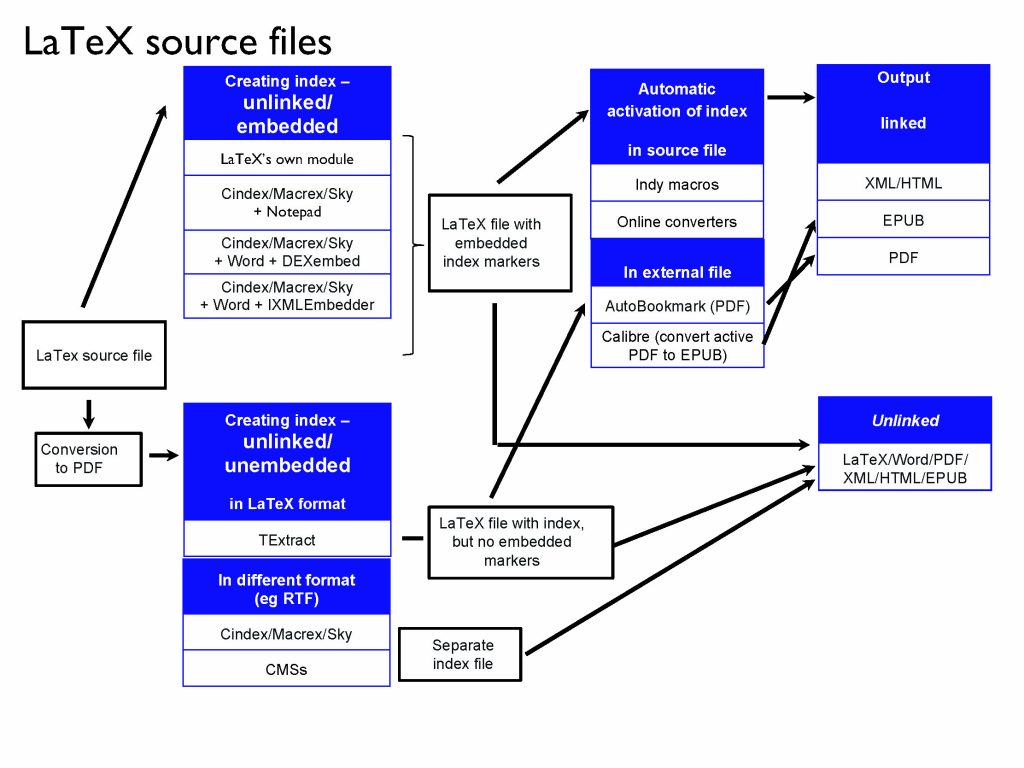

Matrix Flowchart for LaTeX source files

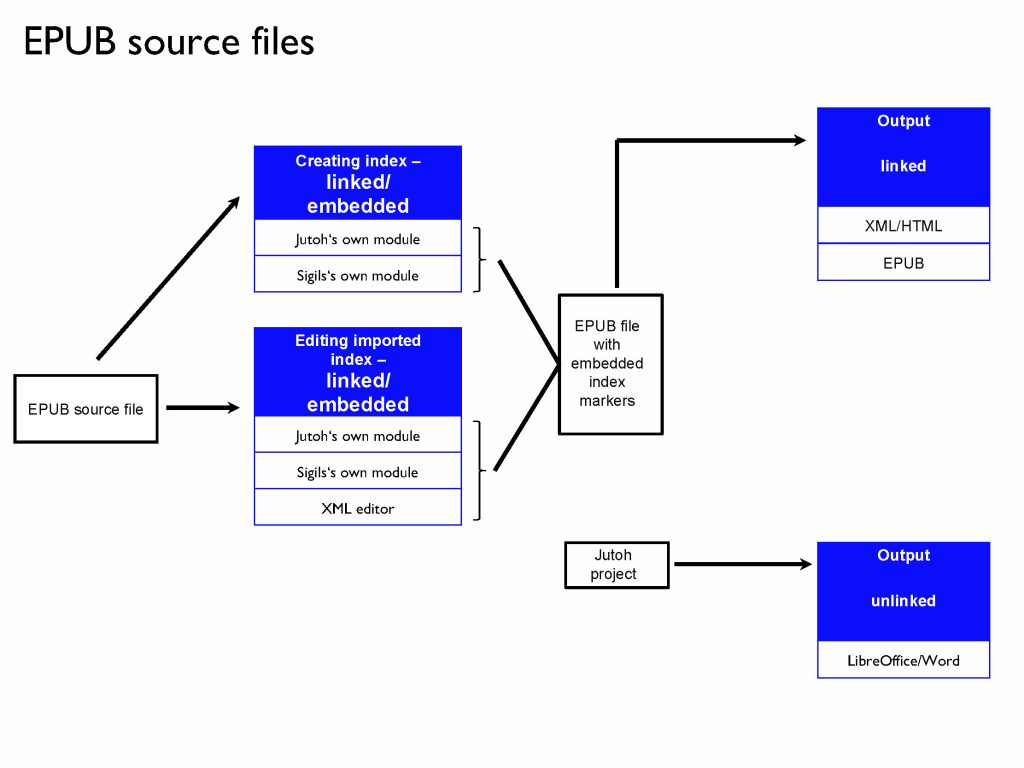

Matrix Flowchart for EPUB source files
